IDI Pro Series 5.5" x 5" 90 Deg Intake Boot - HD Reinforced 6 Ply Silicone Hump Hose Coupler with Steel Ring Support
IDI Pro Series 5.5" x 5" 90 Deg Intake Boot - HD Reinforced 6 Ply Silicone Hump Hose Coupler with Steel Ring Support
Regular price
$64.99 USD
Regular price
Sale price
$64.99 USD
Quantity
Couldn't load pickup availability

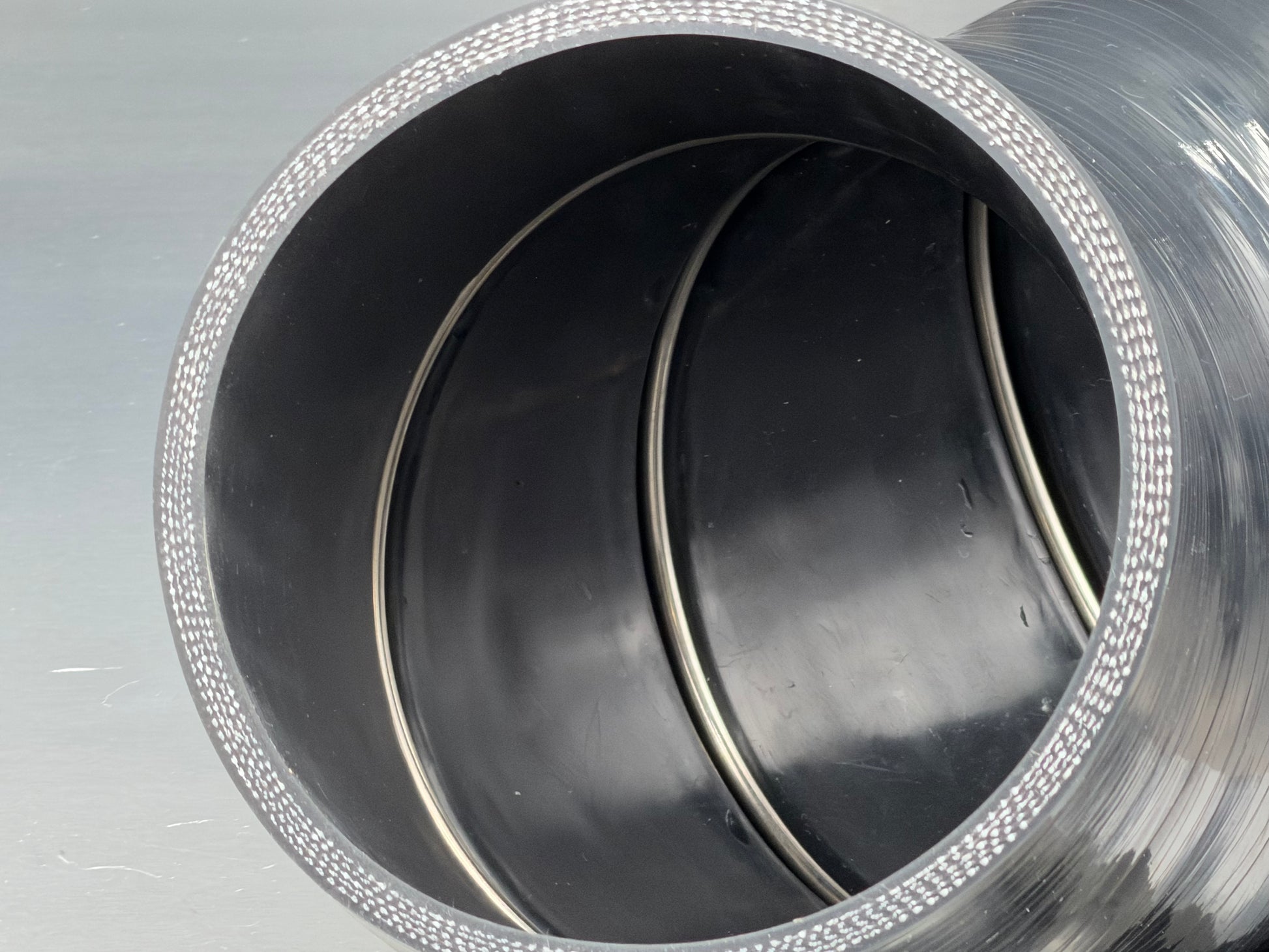

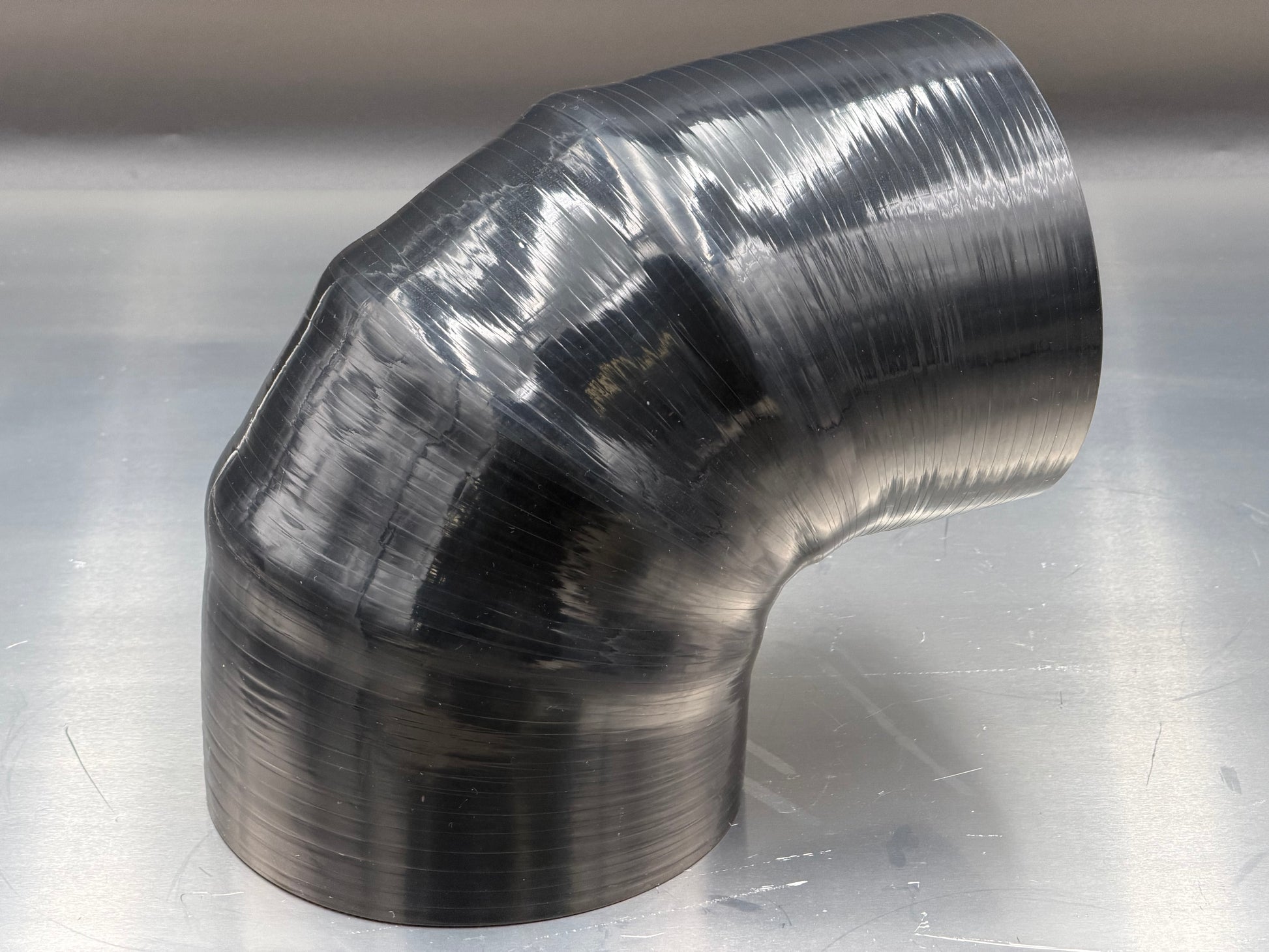

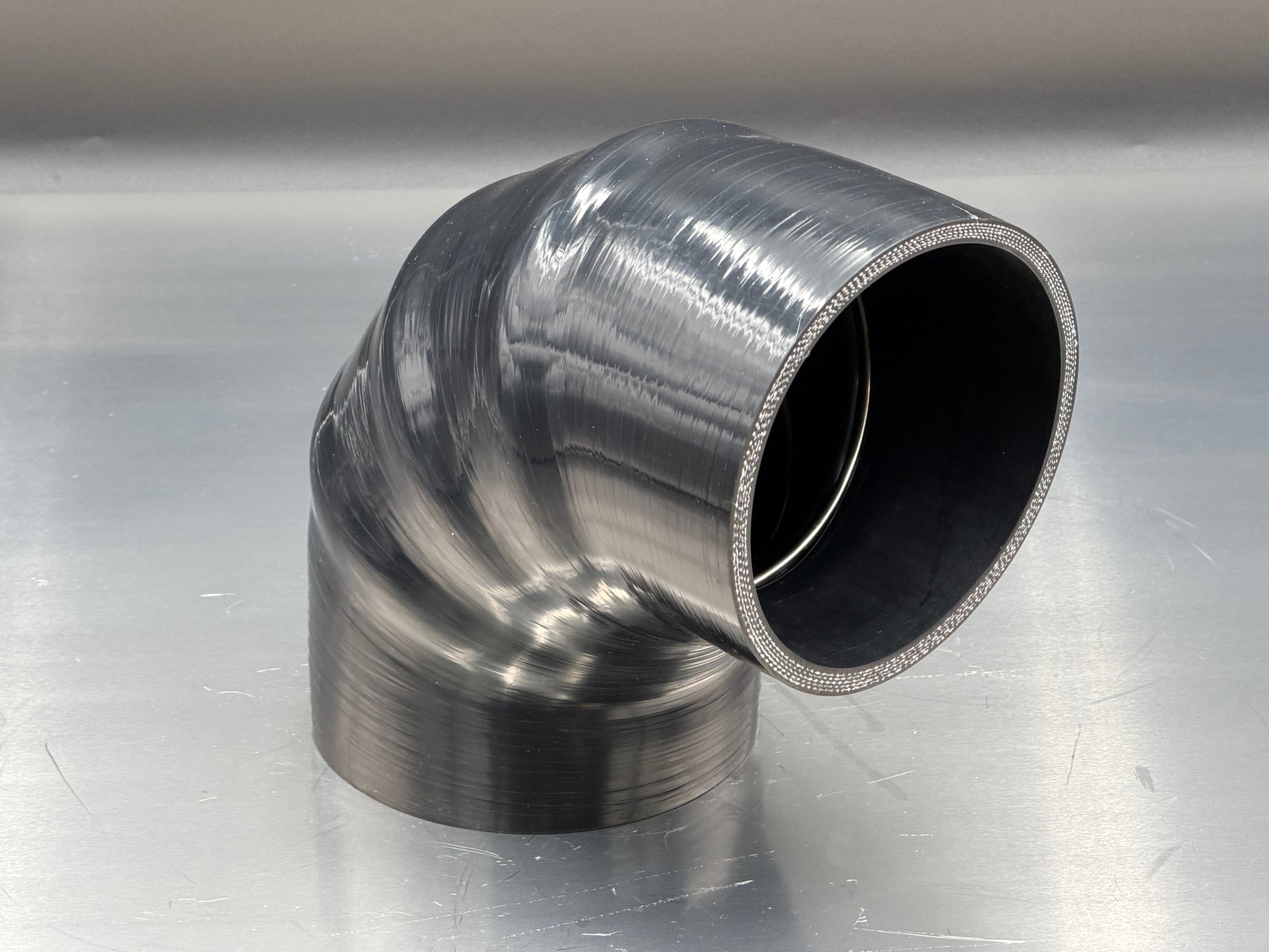

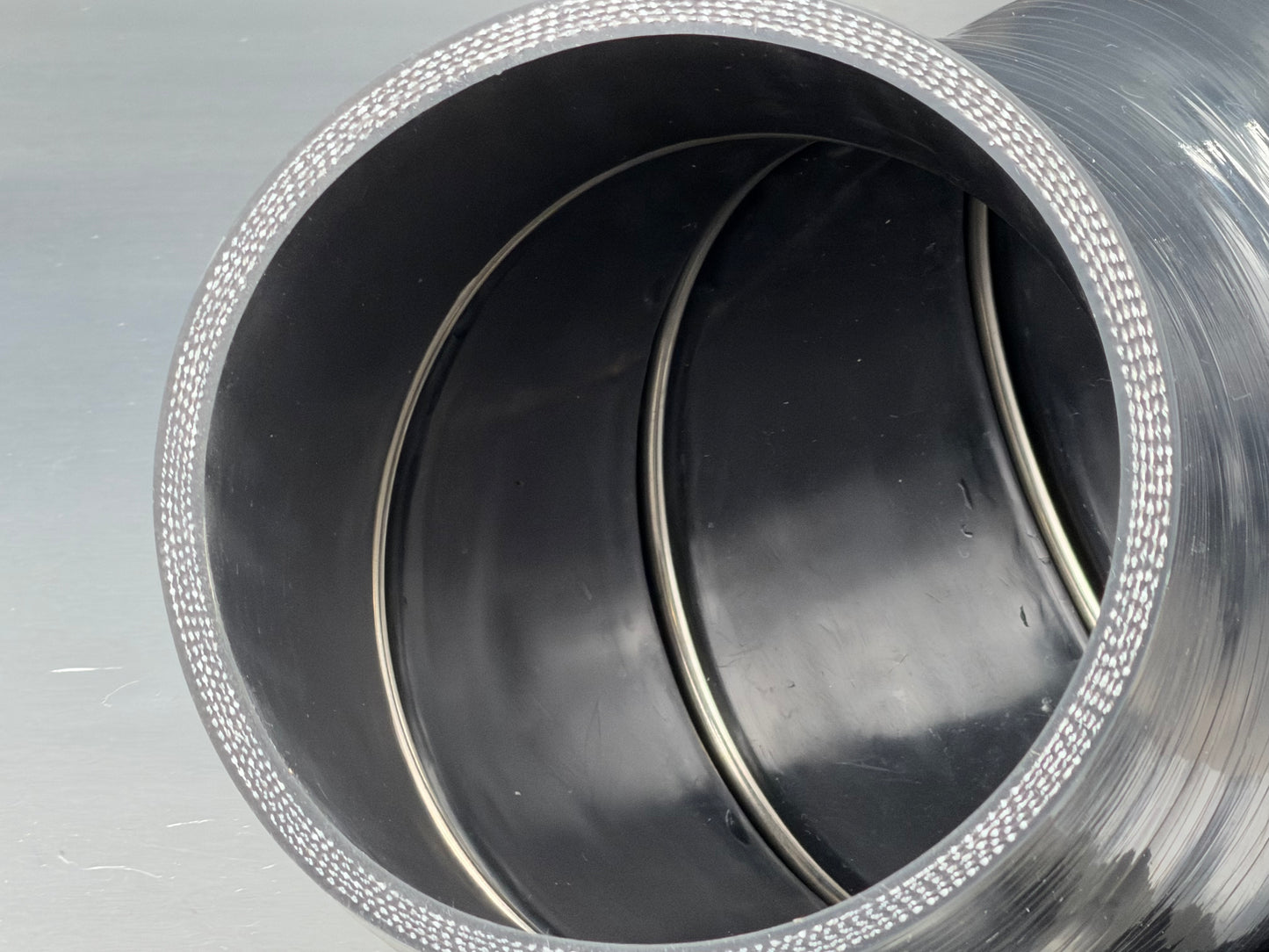

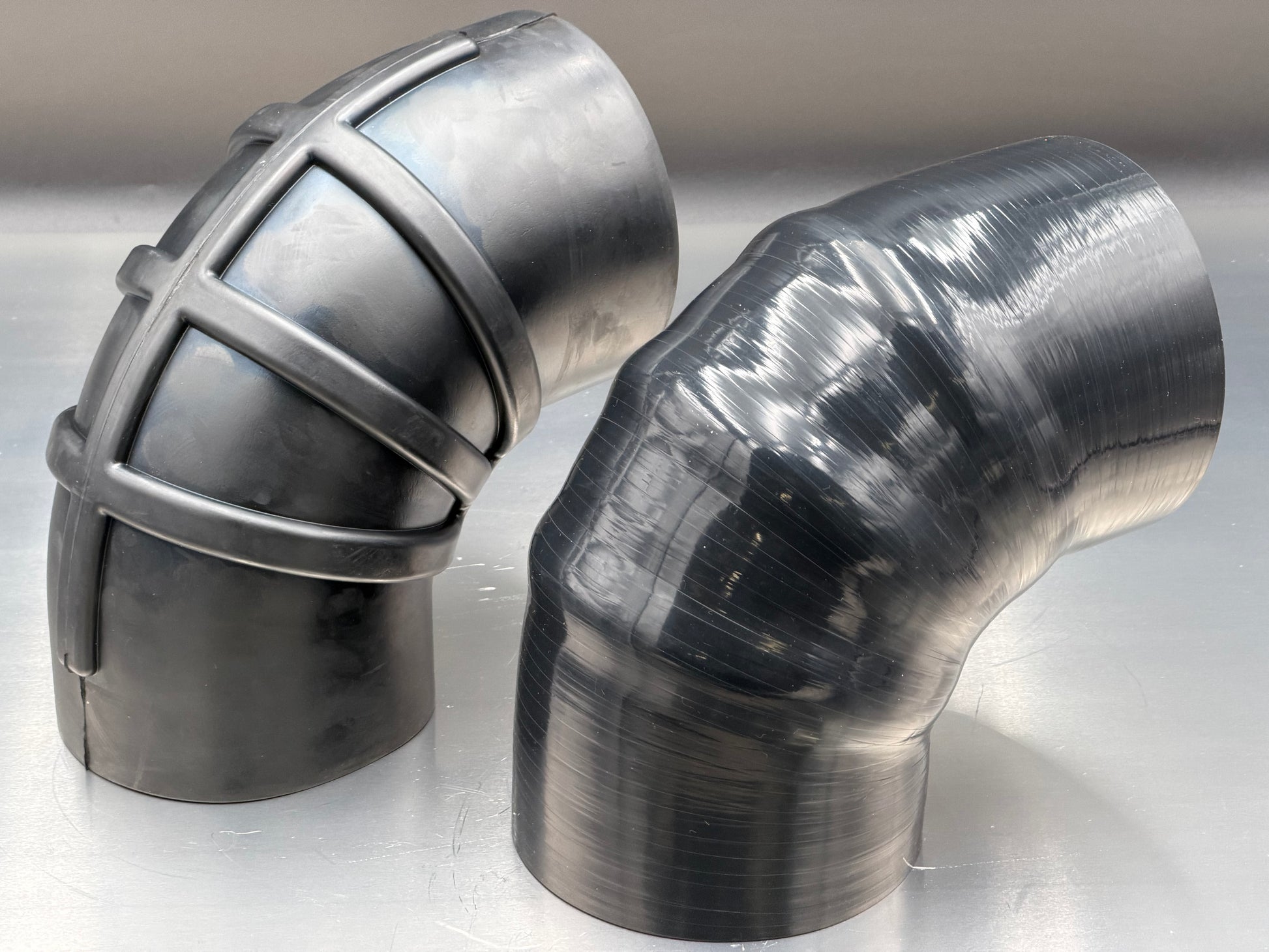

IDI Pro Series 90 Degree Intake Boot - HD Reinforced 6 Ply Silicone Hump Hose Coupler with Plated Steel Rings Support
90 Degree Elbow 5.5" to 5" connection
Our six-ply negative pressure silicone couplers are built for the heavy-duty trucking industry, providing unmatched durability, flexibility, and reliability in high-pressure and vacuum engine applications. Designed to withstand extreme heat, vibration, and harsh operating conditions, these couplers deliver consistent airflow and long service life—reducing downtime and maintenance costs.
Technical Specifications:
- Construction: 6-ply reinforced silicone with high-tensile fabric layers
- Temperature Range: -65°F to 500°F (-54°C to 260°C)
- Pressure Rating: Up to 100 PSI (depending on diameter)
- Vacuum Rating: Engineered for high negative pressure / vacuum applications)
- Compliance: Meets or exceeds SAE J20 standards (where applicable)
- Sizes Available: Custom diameters and lengths available upon request
